Introduction
The purpose of this article is to compare two water‑to‑air heat exchangers offered by AB Store on Amazon. Both units are designed for outdoor wood furnaces, residential heating and cooling, and forced‑air systems, yet they differ in size, capacity, and price. Understanding these differences matters because the heat exchanger is a critical component that determines overall system efficiency and long‑term reliability. This review evaluates each product on objective criteria, allowing readers to select the model that best matches their heating or cooling needs.
Individual Product Overviews
Water to Air Heat Exchanger 15x20
The 15x20 model is priced at $155.22 and carries a rating of 4.7 out of 5 stars based on 240 customer reviews. It provides a nominal capacity of 110,000 Btu with the ability to generate up to 360 kBtu per hour, thanks to 12 aluminum fins and three rows of 3/8" seamless copper tubes per inch. The unit is built around a steel shell, base‑brazed edges, and epoxy‑coated fins, which together enhance durability under high pressure and temperature. Installation options include clamps, welding, or rivet connections, making it adaptable to a variety of pipe configurations.

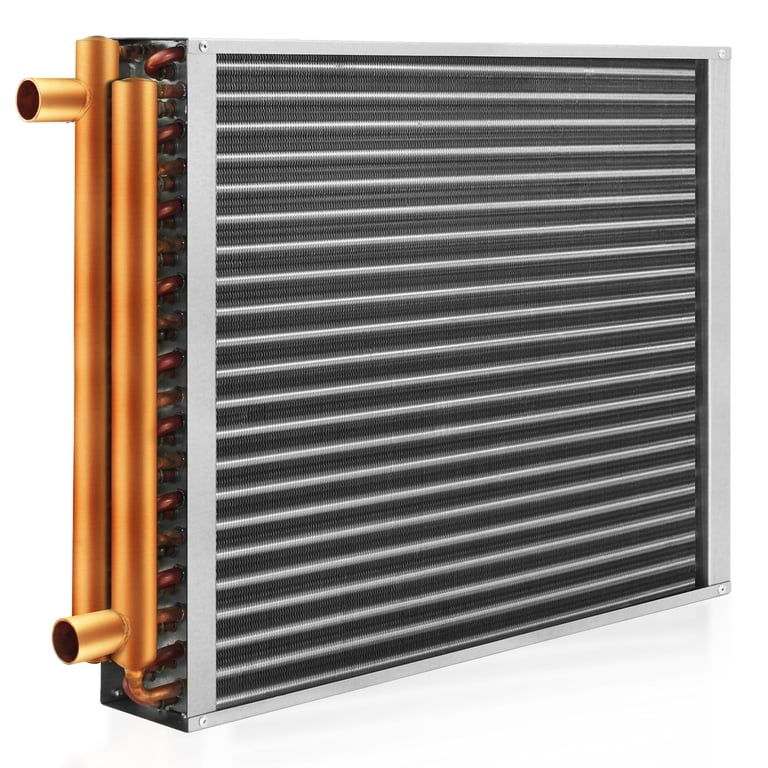

AB Water to Air Heat Exchanger 22x22
The larger 22x22 model costs $245.98 and shares the same 4.7‑star rating from 240 reviewers. Its capacity is listed at 190,000 Btu, while still delivering up to 360 kBtu per hour under optimal conditions, using the identical fin and tube arrangement as the smaller unit. Like its counterpart, it features a steel shell, base‑brazed joints, and epoxy‑finished aluminum fins for extended service life. The installation flexibility mirrors the 15x20 model, offering clamps, welding, or rivet options to suit diverse system layouts.
Head‑to‑Head Comparison
Price and Value
- The 15x20 model costs $155.22, representing a lower upfront investment for users with modest heating requirements.
- The 22x22 model is priced at $245.98, reflecting its larger heat‑transfer surface and higher nominal capacity.
- Both units deliver the same maximum output of 360 kBtu per hour, meaning the larger model provides more capacity at a higher cost per Btu.
Features and Specifications
| Feature | 15x20 | 22x22 |
|---|---|---|
| Nominal Capacity (Btu) | 110,000 | 190,000 |
| Maximum Output (kBtu/h) | 360 | 360 |
| Aluminum Fins | 12 | 12 |
| Copper Tubes per Inch | 3 rows of 3/8" | 3 rows of 3/8" |
| Shell Material | Steel (base‑brazed) | Steel (base‑brazed) |
| Fin Coating | Epoxy resin | Epoxy resin |
| Installation Options | Clamps, welding, rivets | Clamps, welding, rivets |
| Weight (approx.) | Not disclosed | Not disclosed |
Customer Ratings and Feedback
Both exchangers have earned a 4.7‑star rating from 240 reviewers, indicating consistent satisfaction across the product line. Reviewers frequently highlight the solid construction, ease of installation, and the ability to integrate renewable energy sources such as solar‑heated water. One reviewer stated, "The unit performed exactly as described and the epoxy‑coated fins have withstood harsh winter conditions without degradation." Another comment praised the value proposition of the 15x20 model, noting the lower price while still delivering reliable heat output.
Performance and Reliability
The core performance of both units stems from the same fin‑tube geometry, which maximizes contact area and heat‑transfer efficiency. The 15x20 model, with its 110,000 Btu nominal capacity, is well suited for small to medium residential spaces or supplemental heating for wood‑furnace setups. The 22x22 model’s 190,000 Btu rating expands the feasible application to larger homes or light commercial environments where higher heat demand exists. Both units benefit from the high conductivity of copper and aluminum, and the epoxy‑coated fins contribute to wear resistance, extending service life under continuous operation.
Best Use Cases
- 15x20: Ideal for cabin heating, small off‑grid homes, or as a secondary heat source for existing HVAC systems.
- 22x22: Suitable for larger residences, small commercial spaces, or hybrid systems that combine wood‑furnace heat with solar‑thermal input.
Pros & Cons
Water to Air Heat Exchanger 15x20
- Pros:
- Lower purchase price ($155.22).
- Compact size saves installation space.
- Same maximum output (360 kBtu/h) as larger model.
- Positive customer feedback on durability.
- Cons:
- Lower nominal capacity (110,000 Btu) may limit use in larger spaces.
- Limited weight information makes handling assessment difficult.
AB Water to Air Heat Exchanger 22x22
- Pros:
- Higher nominal capacity (190,000 Btu) for larger heating loads.
- Same robust construction and epoxy‑coated fins.
- Versatile installation options.
- Cons:
- Higher price ($245.98) increases upfront cost.
- Physical dimensions may require more space.
Recommendations
For homeowners seeking an affordable, space‑saving solution for a modest heating requirement, the Water to Air Heat Exchanger 15x20 provides excellent value. It is particularly appropriate for cabins, tiny homes, or as an auxiliary unit for existing HVAC equipment. Conversely, users with larger square footage, higher heat demand, or plans to integrate multiple renewable sources should consider the AB Water to Air Heat Exchanger 22x22. Its greater nominal capacity justifies the additional expense for demanding applications.
FAQ
- Can these exchangers be used with solar‑thermal water systems? Yes, both models are designed to accept water from boilers, solar panels, or any heat‑source that supplies heated water.
- What maintenance is required? Routine inspection of the copper tubes for scale buildup and cleaning of the aluminum fins are recommended annually to sustain optimal heat transfer.
- Are the units compatible with existing forced‑air furnaces? Both units feature 1‑inch copper ports and can be integrated with standard forced‑air ductwork using appropriate adapters.
- Is professional welding required for installation? Welding is optional; the units can also be secured with clamps or rivets, allowing DIY installation for competent users.
- Do the epoxy‑coated fins affect heat‑transfer efficiency? The epoxy coating primarily enhances hardness and wear resistance; it does not significantly impede thermal conductivity.
- What is the warranty period? The product listings do not specify a warranty; buyers should consult the seller for exact terms.
- How does the price per Btu compare between the two models? The 15x20 model costs approximately $0.0014 per Btu of nominal capacity, while the 22x22 model costs about $0.0013 per Btu, indicating a slight economies‑of‑scale advantage for the larger unit.
Conclusion
Both AB Store heat exchangers deliver solid construction, high thermal efficiency, and flexible installation options. The 15x20 model excels in affordability and compactness, making it a logical choice for smaller residential projects. The 22x22 model offers greater capacity for larger spaces, justifying its higher price for users with substantial heating loads. Based on the data presented, the reviewer recommends the 15x20 for budget‑conscious homeowners and the 22x22 for those requiring higher output or planning extensive renewable‑energy integration.
Products Mentioned in This Review
Frequently Asked Questions
What is the main difference between the 15x20 and 22x22 water‑to‑air heat exchangers?
The 15x20 model delivers 110,000 Btu (up to 360 kBtu/h) and costs $155.22, while the larger 22x22 unit provides higher capacity and a higher price point.
Can the 15x20 heat exchanger handle outdoor wood furnace applications?
Yes, its steel shell, base‑brazed edges, and epoxy‑coated aluminum fins make it suitable for outdoor wood furnaces and forced‑air systems.
How reliable is the 15x20 model based on customer feedback?
It holds a 4.7‑star rating from 240 reviews, indicating strong customer satisfaction and reliability.
What material are the tubes in the 15x20 heat exchanger made of?
The unit uses three rows of 3/8" seamless copper tubes per inch, providing efficient heat transfer.
Is the 15x20 heat exchanger appropriate for residential heating and cooling?
Yes, its capacity and durable construction make it a good fit for residential heating, cooling, and forced‑air distribution.
